Pump Parts Model #375
The SunPumper™ #375 Pump is a rugged, dependable pump system that is operated in demanding applications. Example: High-pressure foamer (soap) injection. methanol injection and corrosion inhibitor injection. Need an Expanded View?
-

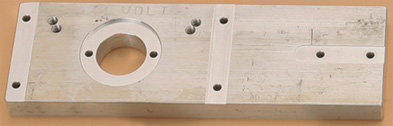

#375-1 Backbone -
#375-2 Front Upright -
#375-3 Rear Upright -
#375-4 Driveshaft
w/ Keyway -
#375-5 Cam -
#375-6 Bearing Block
(4 1.4" x 20 x 3/8"
set screws required) -
#375-7 Bearing for
Bearing Block -
#375-8 Drive Bushing -
#375-9 Bearing Block
Cover Plate -
#375-10 Push Rods - 2 Required -
#375-11 Hex Motor Standoffs
2 Required -
#375-12 Pump Head -
#375-13 Insert
for Pump Head -
#375-14 Packing Set -
#375-15 Carbide Piston -
#375-17 Suction
Check Valve -
#375-18 Discharge
Check Valve -
#375-19 Igus Bearing
for Uprights - 4 Required -
#375-20 Igus Bearings for
Drive Bushing - 2 Required -
#375-21 3/8" Stop Collar -
Cam Follower -
Push Rod Bar -
Bearing Spacer -
Plastic Washer Spacer
2 Required -
10/32" x 3/8" Screw
2 for Bearing Block
4 for Pump Head -
1/4" x 20 x 3/8" Set Screw
4 for bearing block
1 for Drive Shaft -
5/16" Jam Nut
4 Required -
10/32" x 1" Screw
4 for Backbone Uprights
2 for Drive Brushing -
10/32" x 1 1/4 screw
2 for backbone -
1/4" x 20 x 5/8" Screw
2 form Motor Standoffs
